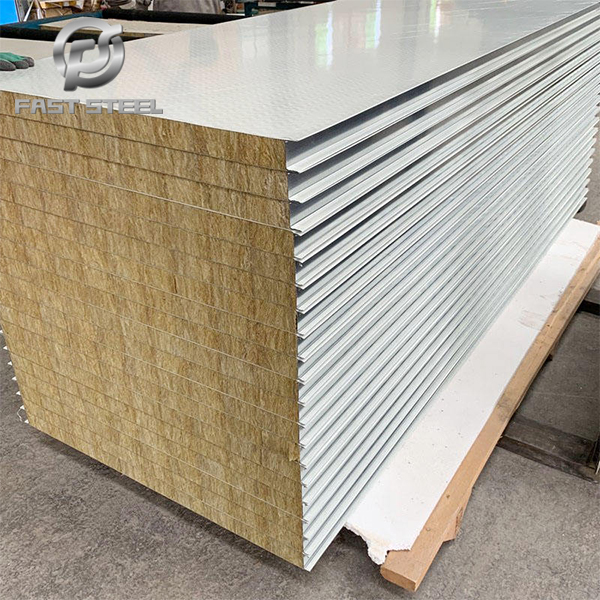

Rock wool sandwich panel

Delivery time: 15-30days
Price term:EXW,FOB,CIF,CFR,CNF,etc.
Payment:L/C,T/T,Western Union,etc.
Port Delivery:Qingdao, Shanghai, Tianjin, Shenzhen,etc.
We can provide customized products in different materials and sizes to meet different needs.
Description
Description

The core material of rock wool sandwich panel is a man-made inorganic fiber made of high-quality natural rock as the main raw material, which is melted and fibrillated at high temperature. It is widely used in the roofs, exterior walls and internal partitions of industrial and civil buildings with fire protection, sound insulation and thermal insulation requirements, especially for projects with high fire protection requirements.



Panel Thickness

50mm/75mm/100mm/150mm/200mm (other customized thickness is also acceptable)

Effective Width

950mm/ 1000mm/ 1150mm(wall) ; 950mm/1000mm(roof)

Length

Customized as customer's request, but max 11.8m because of container shipment

Insulation Core Type

Rock Wool board (Density 80kg/m3~120kg/m3)

Compound Details



External Layer: PPGI steel sheet, 0.3mm~0.8mm available
Middle insulation: Rock Wool board, 50mm/75mm/100mm/150mm/200mm
Internal Layer: PPGI steel sheet, 0.3mm~0.8mm available

Surface Color

Standard is off-white (RAL9002) or sky blue(RAL5015).
Other colors also can be customized but need a quantity bigger than 500sqm.

Thermal Conductivity

0.044W/m.k
Sound Absorbing 35dB~40dB

Lifetime

≥15 years

Advantages

Heat insulation; Fireproof(Grade A); Sound absorbing.

Applications

Widely used as wall/roofing materials for Office; Warehouse; Workshop; Poultry House; Planting Room; Shelters; Cleanroom Etc.



Rock wool core material: The rock wool blocks with a density of 120kg/m3 are interlaced and laid, and the fibers are perpendicular to the upper and lower surfaces of the sandwich panel, and are closely connected to enrich the entire longitudinal cross section of the sandwich panel. The rock wool blocks and between the rock wool and the upper and lower steel plates are bonded by high-strength foaming agents to form a whole.




Rock wool sandwich panel
The sophisticated production process ensures that the high-density rock wool insulation body and the inner wall of the metal plate can produce extremely Strong adhesive force, so that the rock wool sandwich panel has good rigidity.

It realizes the compounding of rock wool and steel plate into a whole through automated equipment in the factory, thus changing the previous way of compounding rock wool boards on site. , and achieve the goals of high quality, high efficiency, reliability and safety. This product has been widely used in Europe and has matured and perfected.
