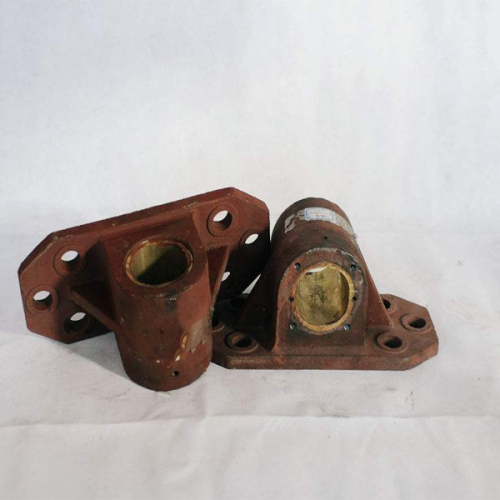

Plummer block

Delivery time: 15-30days
Price term:EXW,FOB,CIF,CFR,CNF,etc.
Payment:L/C,T/T,Western Union,etc.
Port Delivery:Qingdao, Shanghai, Tianjin, Shenzhen,etc.
We can provide customized products in different materials and sizes to meet different needs.
Description
Description

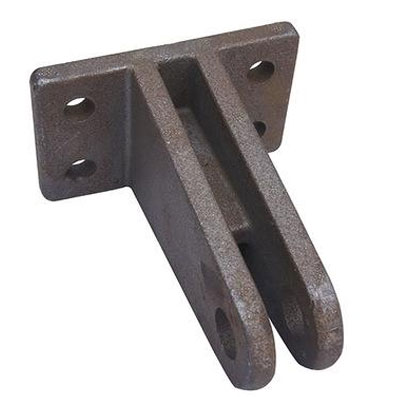

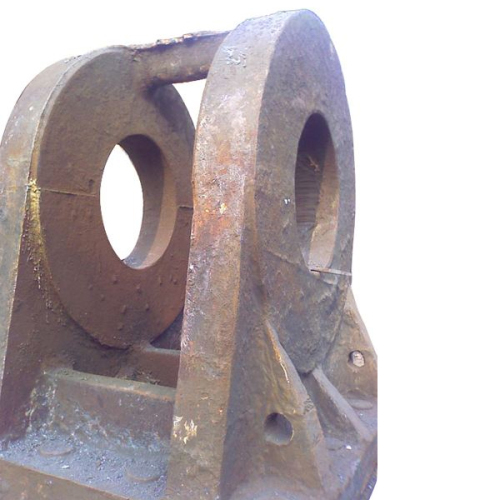

Hinge hinge refers to the support hinge of the arc door. Through the arm end hinge rotating open and close and under water pressure to the gate pier. The fixed hinge seat is the key spare part used in the arc-shaped lifting machine of large reservoir gate.






The stranding base adopts solid sample pit, manual modeling and core formation technology, and the bottom of the pit is buried with coke block, straw bag, steel pipe and so on to strengthen the exhaust. Sand boxes are set on four sides of the model, and the sand consumption is 70 ~ 100mm.

After the processing amount of the hinge is applied, the diameter of the hot joint at the root of the spoke plate is ∅180mm. Considering the overheating of the molten steel, the slow heat dissipation of the large plate with the size of 1300mm ×1400mm ×145(mm) and the influence of the hot joint contact at the root of the riser.
Plummer block

By analyzing the structural characteristics of the casting, it is concluded that the casting height is large, the wall thickness is large and uniform everywhere, and the feeding and shrinking are smooth. The main feeding objects of the four risers are large plates with size of 1300mm ×1400mm ×145mm and adjacent parts.

The mass of hinge plate is 2060 kg. In this case, the riser design is sufficient. Practice has proved that there is no shrinkage cavity defect in all castings, and there is no excessive loose defect in all castings tested by users.
