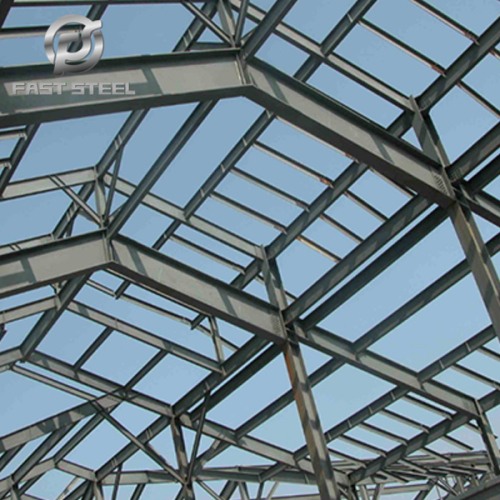

The steel structure workshop mainly refers to the main load-bearing components are composed of steel. Including steel columns, steel beams, steel structure foundations, steel roof trusses, and steel roofs. Note that walls of steel structures can also be enclosed by brick walls. Many new factories have begun to use steel structure factories, which can be divided into light and heavy steel structure factories. Industrial and civil construction facilities built with steel are called steel structures.
Main Steel Frame |
H section steel |
Q345 steel 8mm/10mm |
|
Welding |
Automatic submerged arc welding |
|
Rust removal |
Sand blasting |
|
Surface processing |
Alkyd paint or galvanized |
|
Intensive bolt |
Grade 10.9 |
Supporting System |
Angle brace |
L50x4,Steel Q235, processed and painted |
|
Cross support |
Φ20, Steel Q235, processed and painted |
|
Belt bar |
Φ89*3, Steel Q235, processed and painted |
|
Small brace |
Φ12,Steel Q235, processed and painted |
|
Ordinary bolt |
Galvanized bolt |
Roof |
Purlin |
C160*60*2.5,Steel Q235, galvanized and painted |
|
Outer-roof panel |
Sandwich panel or corrugated steel plate |
|
Transparent lighting panel |
6mm thick PVC |
|
Accessories |
Glass cement, self-tapping screws, etc. |
|
Edge cover |
Made from 0.5mm thick, colored sheet steel |
|
Gutter |
Made from 0.8mm thick sheet steel |
|
Rainspout |
Φ110PVC |
Walls |
Purlin |
C160*60*2.5,Steel Q235, painted |
|
Wall |
sandwich panel or corrugated steel plate |
|
Accessories |
Glass cement, self-tapping screws, etc. |
|
Edge cover |
Made from 0.5mm thick, colored sheet steel |
|
Axial fan |
Axial fan |
|
Doors & windows |
Rolling door/sliding door PVC/alu/steel window |
